RESEARCH ARTICLE

Dual-strategy modification for three-dimensional-printed silk methacryloyl hydrogels: Nanofiber reinforcement and poly(ethylene oxide)-induced porosity

Bingxue Xv1† ,  Xin An1† ,  Ning Zhou1 ,  Wenxin Meng1 ,  Yvmeng Luo1 ,  Guomin Wu1*
Show Less
1 College & Hospital of Stomatology, Anhui Medical University, Key Lab. of Oral Diseases Research of Anhui Province, Hefei 230032, China.
†These authors contributed equally to this work.
IJB, 025140118 https://doi.org/10.36922/IJB025140118
Received: 1 April 2025 | Accepted: 19 May 2025 | Published online: 19 May 2025
© 2025 by the Author(s). This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution 4.0 International License ( https://creativecommons.org/licenses/by/4.0/ )
Download PDF
Cite
XML
Abstract

Hydrogels have emerged as promising scaffolds for cartilage tissue engineering due to their structural mimicry of native articular cartilage extracellular matrix. However, conventional hydrogels typically exhibit only nanoscale porosity and poor mechanical properties, which limit nutrient delivery, metabolic waste exchange, and structural fidelity. To address these challenges, we developed an innovative cell-laden porous silk methacryloyl (SilMA) hydrogel system with biomechanical reinforcement using three-dimensional (3D) bioprinting. The porous architecture was created through a water-in-water emulsification strategy employing poly(ethylene oxide) (PEO) as a sacrificial template. This pore-forming process resulted in a remarkable structural modulation, achieving an increase of over 100% in average pore diameter and a 75% enhancement in overall porosity compared to hydrogels without PEO. However, this structural modification compromised the compressive modulus by approximately 50%. Therefore, homogenized electrospun silk fibroin nanofibers (NFs) were incorporated into the bio-ink to improve the mechanical properties and optimize surface topography. The introduction of NFs (1–2 wt%) not only recovered the compressive strength and modulus (close to SilMA hydrogels) but also improved the 3D printability of PEO/SilMA hydrogels. Additionally, the hydrogel demonstrated excellent biocompatibility and markedly upregulated expression of chondrogenic-related genes, including COL2A1, ACAN, and SOX9. Furthermore, the subcutaneous implantation experiments in non-obese diabetic/severe combined immunodeficiency mice further confirmed the potential of PEO/NF/SilMA hydrogels in promoting cartilage formation. Therefore, this study proposes a promising dual-strategy approach for cartilage tissue engineering, integrating NFs reinforcement and PEO-induced porosity.

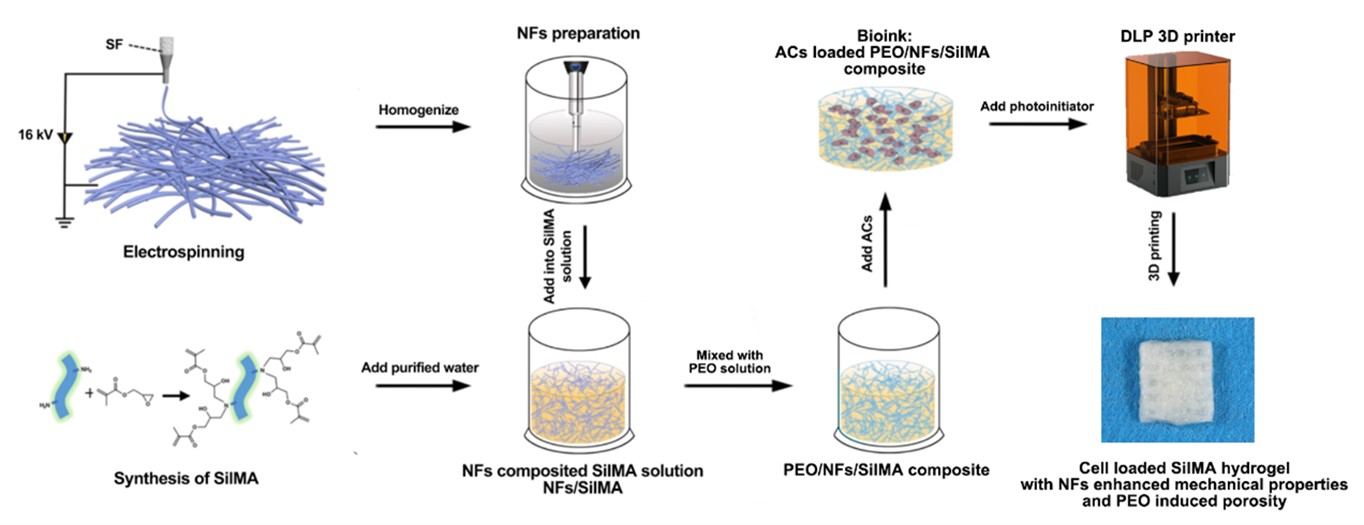

Graphical abstract
Keywords
Cartilage regeneration
Electrospun nanofiber
Poly(ethylene oxide)
Silk methacryloyl
Three-dimensional bioprinting
Funding
This research was funded by the National Natural Science Foundation of China (No. 82201034), and partially funded by Hefei Municipal Natural Science Foundation (No. 202348), Anhui Medical University Enhancement Program for Basic and Clinical Collaborative Research (No. 2022xkjT017), Anhui Provincial Institute of Translational Medicine Research Fund Project (No. 2021zhyx-C69), Anhui Medical University Graduate Research and Practice Innovation Program (No. YJS20230160).
Conflict of interest
The authors declare they have no competing interests.
