ORIGINAL RESEARCH ARTICLE

Anisotropy of room- and high-temperature mechanical properties in GH5188 superalloy fabricated by laser powder bed fusion

Gao Huang1,2 ,  Huihui Yang3 ,  Xiaojie Nie4 ,  Yang Qi5*
Show Less
1 Wuhan National Laboratory for Optoelectronics, School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan, Hubei, China
2 Huagong Technology Industry Co., Ltd., Wuhan, Hubei, China
3 Suzhou National Laboratory, Suzhou, Jiangsu, China
4 Naval University of Engineering, Wuhan, Hubei, China
5 Taihang Laboratory, Chengdu, Sichuan, China
MSAM, 026040009 https://doi.org/10.36922/MSAM026040009
Received: 24 January 2026 | Revised: 25 February 2026 | Accepted: 5 March 2026 | Published online: 18 May 2026
(This article belongs to the Special Issue Additive Manufacturing of Materials for Extreme Environments)
© 2026 by the Author(s). This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution 4.0 International License ( https://creativecommons.org/licenses/by/4.0/ )
Download PDF
XML
Cite
Abstract

Laser powder bed fusion (LPBF) enables near-net-shape fabrication of GH5188 for hot-section applications, but orientation-dependent mechanical reliability remains insufficiently quantified. In this study, tensile tests were conducted at room temperature and 900 °C along the horizontal and vertical directions for LPBF-fabricated GH5188 in the as-fabricated (AF) and heat-treated (HT) states, and the results were correlated with microstructural characterization by scanning electron microscopy and electron backscatter diffraction. The results showed that the AF condition exhibited high strength with weak tensile anisotropy at room temperature and 900 °C. Heat treatment markedly reduced YS and improved ductility at both temperatures, and it also led to a more evident orientation dependence at 900 °C. Microstructural analyses indicated that the AF state presented LPBF hierarchical features that contribute to high initial flow resistance, whereas heat treatment removed these features and produced section-dependent grain and grain-boundary evolution, increasing the relative influence of grain-scale deformation at high temperature. This study provides an orientation-dependent AF/HT dataset and a microstructure-based interpretation of anisotropy evolution in LPBF GH5188, which is relevant to the qualification and design of high-temperature additive manufacturing components.

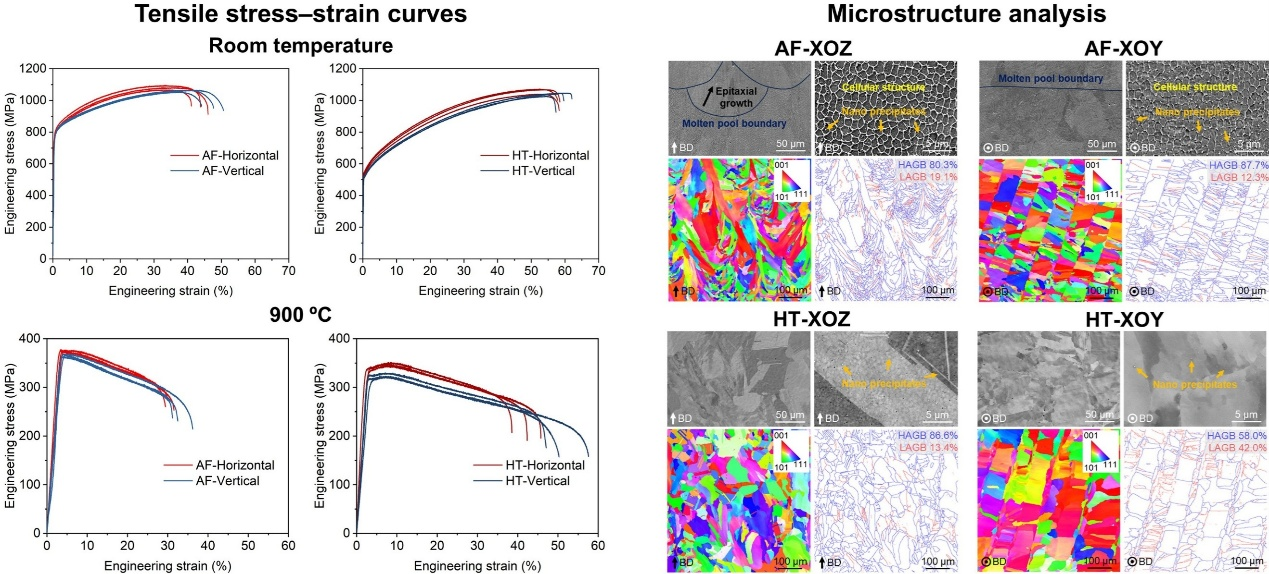

Graphical abstract
Keywords
GH5188
Laser powder bed fusion
Anisotropy
Mechanical properties
Microstructure
Funding
This work was supported by the Taihang Laboratory Project (No. BK123) and the National Natural Science Foundation of China (Nos. 52305490 and 62505373).
Conflict of interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
References
  1. Liu D, Chai H, Yang L, Qiu W, Guo Z, Wang Z. Study on the dynamic recrystallization mechanisms of GH5188 superalloy during hot compression deformation. J Alloys Compd. 2022;895:162565. doi: 10.1016/j.jallcom.2021.162565



  1. Wang X, Luo G, Sun Y, et al. Effect of strain rate and high temperature on quasi-static and dynamic compressive behavior of forged GH5188 superalloy. Mater Sci Eng A. 2023;886:145391. doi: 10.1016/j.msea.2023.145391



  1. Lee WS, Kao HC. High temperature deformation behaviour of Haynes 188 alloy subjected to high strain rate loading. Mater Sci Eng A. 2014;594:292-301. doi: 10.1016/j.msea.2013.11.076



  1. Gu D, Shi X, Poprawe R, Bourell DL, Setchi R, Zhu J. Material-structure-performance integrated laser-metal additive manufacturing. Science. 2021;372(6545):eabg1487. doi: 10.1126/science.abg1487



  1. Zhao Z, Jia C, Li Y, et al. Microstructure and mechanical properties of additively manufactured GH4099 superalloy. Mater Sci Addit Manuf. 2025;4(4):25220047. doi: 10.36922/msam025220047



  1. Locatelli G, Bocchi S, Quarto M, D’Urso G. Laser powder bed fusion of atomized industrial waste-derived Inconel 725 alloy powders: A machine learning-assisted process optimization. Mater Sci Addit Manuf. 2025;5(1):025320072. doi: 10.36922/msam025320072



  1. Enrique PD, Minasyan T, Toyserkani E. Laser powder bed fusion of difficult-to-print γ’ Ni-based superalloys: A review of processing approaches, properties, and remaining challenges. Addit Manuf. 2025;106:104811. doi: 10.1016/j.addma.2025.104811



  1. Mostafaei A, Ghiaasiaan R, Ho IT, et al. Additive manufacturing of nickel-based superalloys: A state-of-the-art review on process-structure-defect-property relationship. Prog Mater Sci. 2023;136:101108. doi: 10.1016/j.pmatsci.2023.101108



  1. Su J, Ng WL, An J, Yeong WY, Chua CK, Sing SL. Achieving sustainability by additive manufacturing: a state-of-the-art review and perspectives. Virtual Phys Prototyp. 2024;19(1):e2438899. doi: 10.1080/17452759.2024.2438899



  1. Su JL, Jiang FL, Teng J, et al. Laser additive manufacturing of titanium alloys: process, materials and post-processing. Rare Met. 2024;43(12):6288-6328. doi: 10.1007/s12598-024-02685-x



  1. Su J, Li Q, Teng J, et al. Programmable mechanical properties of additively manufactured novel steel. Int J Extrem Manuf. 2024;7(1):015001. doi: 10.1088/2631-7990/ad88bc



  1. Su J, Chen L, Van Petegem S, et al. Additive manufacturing metallurgy guided machine learning design of versatile alloys. Mater Today. 2025;88:240-250. doi: 10.1016/j.mattod.2025.06.031



  1. Wei W, Xiao JC, Wang CF, et al. Hierarchical microstructure and enhanced mechanical properties of SLM-fabricated GH5188 Co-superalloy. Mater Sci Eng A. 2022;831:142276. doi: 10.1016/j.msea.2021.142276



  1. Yan Z, Trofimov V, Song C, et al. Microstructure and mechanical properties of GH5188 superalloy additively manufactured via ultrasonic-assisted laser powder bed fusion. J Alloys Compd. 2023;939:168771. doi: 10.1016/j.jallcom.2023.168771



  1. Liu Y, Huang Z, Zhang C, et al. Microstructure and mechanical properties of Haynes 188 alloy manufactured by laser powder bed fusion. Mater Charact. 2024;211:113880. doi: 10.1016/j.matchar.2024.113880



  1. Liu Y, Huang Z, Zhang C, et al. Tailoring microstructure and twin-induced work hardening of a laser powder bed fusion manufactured Haynes 188 alloy. Mater Sci Eng A. 2024;891:145925. doi: 10.1016/j.msea.2023.145925



  1. Wu Y, Sun B, Chen B, et al. Cracking mechanism of GH5188 alloy during laser powder bed fusion additive manufacturing. Mater Charact. 2024;207:113548. doi: 10.1016/j.matchar.2023.113548



  1. Miao L, Wei H, Yue J, et al. Superior mechanical properties of a high temperature Co-based superalloy fabricated by laser powder bed fusion. Addit Manuf Lett. 2025;14:100311. doi: 10.1016/j.addlet.2025.100311



  1. Yang B, Liu Y, Qi Y, et al. Effects of heat treatment on microstructure and mechanical properties of GH5188 superalloy fabricated by Selective laser melting. Mater Sci Eng A. 2025;946:149084. doi: 10.1016/j.msea.2025.149084



  1. Mukherjee T, Elmer JW, Wei HL, et al. Control of grain structure, phases, and defects in additive manufacturing of high-performance metallic components. Prog Mater Sci. 2023;138:101153. doi: 10.1016/j.pmatsci.2023.101153



  1. Chandra S, Radhakrishnan J, Huang S, Wei S, Ramamurty U. Solidification in metal additive manufacturing: challenges, solutions, and opportunities. Prog Mater Sci. 2025;148:101361. doi: 10.1016/j.pmatsci.2024.101361



  1. Zhu Z, Hu Z, Seet HL, et al. Recent progress on the additive manufacturing of aluminum alloys and aluminum matrix composites: Microstructure, properties, and applications. Int J Mach Tools Manuf. 2023;190:104047. doi: 10.1016/j.ijmachtools.2023.104047



  1. Niu Z, Zhang J, Liu F, et al. Forming quality control of Laser Powder Bed Fusion GH3536 alloy: Surface quality, defects, and microstructure. Mater Sci Addit Manuf. 2025;4(4):025220042. doi: 10.36922/msam025220042



  1. Yang B, Shang Z, Ding J, et al. Investigation of strengthening mechanisms in an additively manufactured Haynes 230 alloy. Acta Mater. 2022;222:117404. doi: 10.1016/j.actamat.2021.117404



  1. Hansen N. Hall–Petch relation and boundary strengthening. Scr Mater. 2004;51(8):801-806. doi: 10.1016/j.scriptamat.2004.06.002



  1. Yang X, Qi Y, Zhang W, Wang Y, Zhu H. Laser powder bed fusion of C18150 copper alloy with excellent comprehensive properties. Mater Sci Eng A. 2023;862:144512. doi: 10.1016/j.msea.2022.144512



  1. Yang C, Chen X, Tian Y, et al. High-temperature oxidation behavior of SLM-processed and forged GH5188 Co-based superalloy. Smart Mater Manuf. 2025;3:100093. doi: 10.1016/j.smmf.2025.100093



  1. Haack M, Kuczyk M, Seidel A, López E, Brueckner F, Leyens C. Comprehensive study on the formation of grain boundary serrations in additively manufactured Haynes 230 alloy. Mater Charact. 2020;160:110092. doi: 10.1016/j.matchar.2019.110092



  1. Galindo-Nava EI, Schlütter R, Messé OMDM, Argyrakis C, Rae CMF. A model for dislocation creep in polycrystalline Ni-base superalloys at intermediate temperatures. Int J Plast. 2023;169:103729. doi: 10.1016/j.ijplas.2023.103729



  1. Yoon JG, Jeong HW, Yoo YS, Hong HU. Influence of initial microstructure on creep deformation behaviors and fracture characteristics of Haynes 230 superalloy at 900 °C. Mater Charact. 2015;101:49-57. doi: 10.1016/j.matchar.2015.01.002



  1. Tang YT, D’Souza N, Roebuck B, Karamched P, Panwisawas C, Collins DM. Ultra-high temperature deformation in a single crystal superalloy: Mesoscale process simulation and micromechanisms. Acta Mater. 2021;203:116468. doi: 10.1016/j.actamat.2020.11.010



  1. Feng J, Wang B, Zhang Y, et al. High-temperature creep mechanism of Ti-Ta-Nb-Mo-Zr refractory high-entropy alloys prepared by laser powder bed fusion technology. Int J Plast. 2024;181:104080. doi: 10.1016/j.ijplas.2024.104080



  1. Li Y, Jiang Z, Li L, Xie G, Zhang J, Feng Q. Dynamic recovery and recrystallization of an as-cast SX superalloy during hot deformation. J Mater Sci Technol. 2025;217:296-310. doi: 10.1016/j.jmst.2024.08.031



  1. Markovic P, Scheel P, Wróbel R, Leinenbach C, Mazza E, Hosseini E. Cyclic mechanical response of LPBF Hastelloy X over a wide temperature and strain range: Experiments and modelling. Int J Solids Struct. 2024;305:113047. doi: 10.1016/j.ijsolstr.2024.113047



  1. Zhou J, Su B, Zhu G, et al. High-temperature tensile properties of laser powder bed fusion Ti–6.5Al–2Zr–1Mo–1V alloy after annealing. Mater Sci Eng A. 2025;923:147700. doi: 10.1016/j.msea.2024.147700



  1. Pham MS, Iadicola M, Creuziger A, Hu L, Rollett AD. Thermally-activated constitutive model including dislocation interactions, aging and recovery for strain path dependence of solid solution strengthened alloys: Application to AA5754-O. Int J Plast. 2015;75:226-243. doi: 10.1016/j.ijplas.2014.09.010
