Study on the printing stability of Invar 36 alloy under different process parameter conditions in gas metal arc additive manufacturing

Giulio Mattera*1* ,  Elena Manoli1 ,  Luigi Nele1
Show Less
1 Department of Chemical, Materials and Production Engineering, University of Naples Federico II, Naples, Italy
MSAM 2025, 4(4), 025220046 https://doi.org/10.36922/MSAM025220046
Received: 30 May 2025 | Accepted: 3 July 2025 | Published online: 24 September 2025
© 2025 by the Author(s). This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution 4.0 International License ( https://creativecommons.org/licenses/by/4.0/ )
Download PDF
XML
Cite
Abstract

Invar 36, a nickel–iron alloy distinguished by its low coefficient of thermal expansion, is a material of significant interest for high-precision applications in aerospace, moulds used in composite material fabrication processes and metrology. This work investigates the stability of depositing Invar 36 through gas metal arc additive manufacturing (GMA-AM), also known as wire arc additive manufacturing, with a focus on identifying process conditions, in a standard gas metal arc welding (GMAW) process, that promote consistent and defect-minimised builds. A series of experiments was conducted to assess the effects of key process parameters – including wire feed speed, welding speed and arc voltage – on deposition stability. Stability was evaluated through geometrical consistency of the deposited walls, arc behaviour and visual inspection of process-induced anomalies such as spatter and lack of fusion. This study presents a novel methodology to quantitatively assess the stability of the GMA-AM process, along with the construction of a process map specifically tailored for the Invar 36 alloy. The insights gained contribute to advancing the understanding of wire-based additive manufacturing of Invar 36, which is still understudied, and provide a foundation for further investigations into its mechanical performance and microstructural evolution under optimised process parameter conditions.

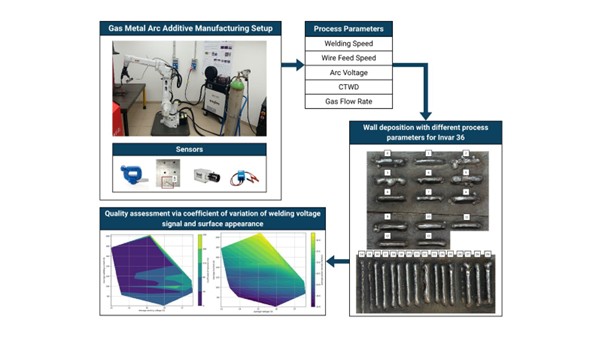

Graphical abstract
